Professional, approved combat helmet made of modern ballistic materials. Designed to protect the head against direct hits from 9x19 mm FMJ and .357 Magnum JSP bullets and shrapnel with velocities of 600 m/s < V50 < 675 m/s.
Protection level IIA according to NIJ 0106.01
|
Armor Type |
Test Ammunition |
Nominal Bullet Mass |
Suggested Barrel Length |
Required Bullet Velocity |
Required Hits Per Armor Specimen |
Permitted Penetrations |
|
IIA |
357 Magnum JSP |
10.2 g |
10 to 12 cm |
381±15 m/s |
4 |
0 |
|
9 mm FMJ |
8.0 g |
10 to 12 cm |
332±15 m/s |
4 |
0 |
The helmet's visor is made of 100% high-quality aramids produced in Europe in the High-Cut standard, i.e. high-strength fibres also used in bulletproof vests and other personal protective equipment. Aramids combine penetration resistance with low dynamic deflection. In addition, they retain ballistic protection properties in the temperature range from -40°C to +50°C and when in contact with water, including sea water. The fibres are fire resistant, do not melt and do not support flames. Aramid fibre casting compression technology was used in the manufacture of the helmets. The appropriate temperature and pressure used during this process ensures that the armour maintains the required parameters.

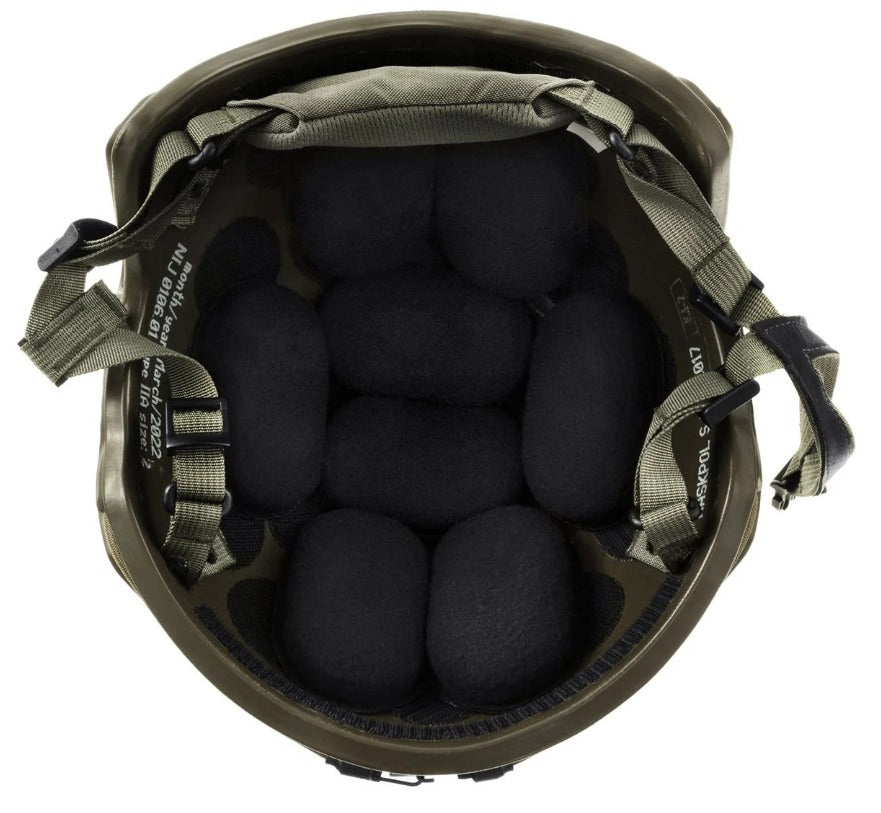

Inside the helmet, inserts are used to absorb impact energy. A complete set for stable positioning of the helmet on the head includes an occipital cushion and shock-absorbing pads.
The neck harness, together with the chin buckle, forms a 4-point adjustable carrying strap system.
Ballistic resistance:
- fragment resistance: V50 parameter above 600 m/s for a 1,1 g FSP fragment,
- bullet resistance: .357 Magnum JSP 10,2 g (425±15) m/s and 9x19 mm FMJ 8,0 g (360±15) m/s according to the PN-V-87001:2011 standard.

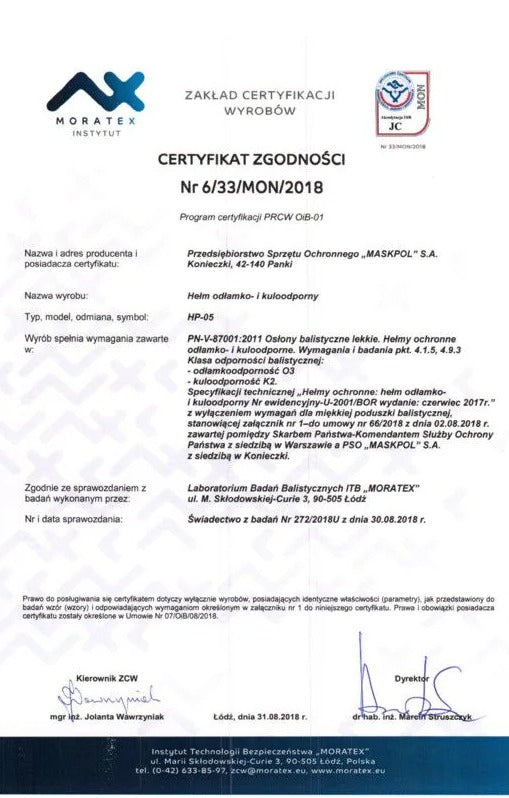

The HP-05 helmet meets the requirements of NIJ Standard 0106.01 "NIJ Standard for Ballistic Helmets" with regard to bullet resistance.

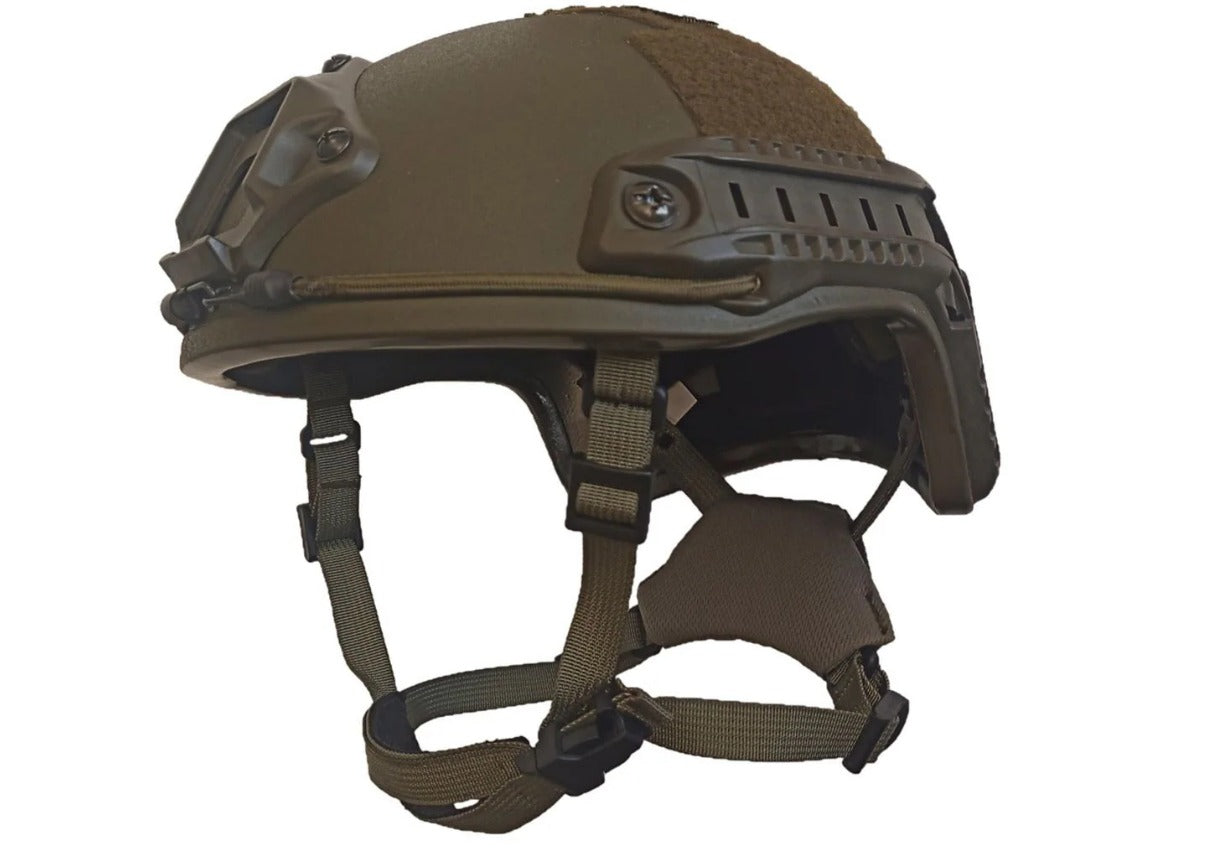

The helmet is equipped with a mounting for night vision devices such as goggles or monoculars. Side mounting rails allow the fitting of additional equipment, in the form of Weaver standard mounting rails, ear protectors or tactical lighting. The high undercut of the helmet ensures compatibility with a wide range of ear defenders.
The Maskpol PGZ HP-05 NIJ IIA bulletproof combat helmet is available in two variants with black or green infill - sent at random.
Warranty: 5 years
Technical data
Material: aramid
Weight: 1400 - 1600 g (depending on size)
Manufacturer: Maskpol, Poland
